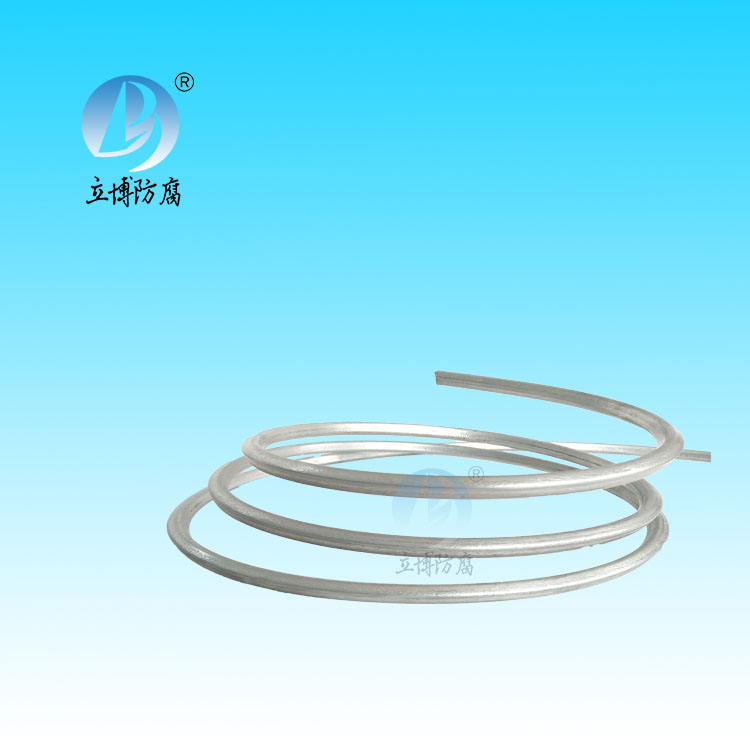

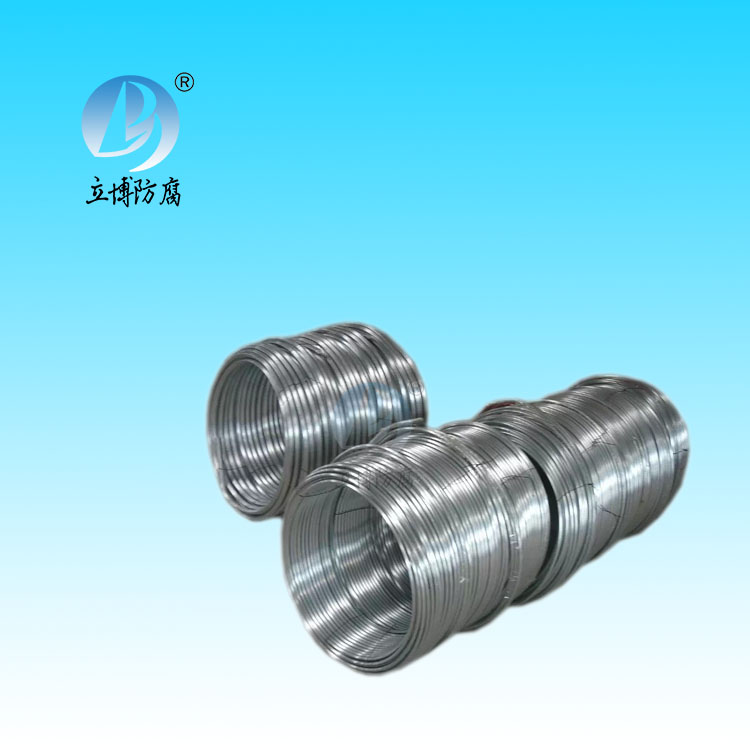

ribbon magnesium anode
Type:Magnesium alloy CP
Features:Especially in long-distance pipelines, crossing pipelines, large storage pipelines, crossing pipe sections, large storage tank bottoms, grounding grids for lightning protection, and short-term anodes in composite anodes.
Release DATE:2021-06-13
The magnesium belt is mainly suitable for coiling the protected body, protecting oil tanks or other steel structures in high resistivity electrolytes, or on the surface of confined construction space, and in high resistivity soil, fresh water and other media.
Product type: ribbon magnesium anode
Standard: ASTM B 843-1995 SY/T0019-1997
Main performance:
The shape of the strip anode is flat, the length can be adjusted, easy to bend, good anti-corrosion performance, no need for external DC power supply, automatic operation after installation, no maintenance, small footprint, low engineering cost, and no interference with the external environment.
Scope of application:
Used for high resistivity environment, protection of pipe in casing, temporary cathodic protection of pipe, protection of storage tank and pipe network, ground grid against strong electrical interference, etc.
Product features:
Magnesium strip sacrific anode is produced with high quality and high purity magnesium. The product complies with astM97-98, GB/T17731-2017 "Magnesium Alloy Sacrific Anode", SY/T0019-97 "Buried Steel Pipeline Sacrific Anode Design Specification for Cathodic Protection" standards. The extruded magnesium strip anode has a large area mass ratio. It therefore produces a larger current than a normal cast anode. These characteristics can make it have unique applications in cathodic protection engineering, especially in long distance pipeline, crossing pipeline, large storage pipeline, crossing pipe section, bottom of large storage tank, grounding grid for lightning protection and short term anode in composite anode.
The magnesium belt is mainly suitable for coiling the protected body, protecting oil tanks or other steel structures in high resistivity electrolytes, or on the surface of confined construction space, and in high resistivity soil, fresh water and other media.
